8-10 tph MTM1800 Limestone BFS Grinding Line in Mexico-mill cases--Henan Vest Machinery Co., ltd

An Ideal Choice for Limestone and Slag Powder Processing in Mexico

In the limestone powder processing industry, Mexican limestone, due to its unique physical and chemical properties, is widely used in industries such as building materials, metallurgy, environmental protection and chemical engineering, agriculture, and daily necessities. The MTM1800 European-style roller mill is designed specifically for processing Mexican limestone powder and blast furnace slag powder, targeting medium-volume production needs. It offers a stable production capacity of 8-10 tons/hour and an adjustable finished product fineness of 80-325 mesh, helping companies efficiently produce high-quality limestone and blast furnace slag powder.

Core Advantages of the MTM1800 Limestone and Blast Furnace Slag Grinding Line

1. Significantly improved transmission efficiency with spiral bevel gears;

2. Independent lubrication systems for all transmission components;

3. Dynamic and static separation mechanisms in the classifier ensure higher separation accuracy;

4. PLC startup control technology ensures reliable operation;

5. High-efficiency fans and optimized fan parameters effectively reduce power consumption;

6. A unique self-circulating air system ensures energy conservation and environmental protection.

Why Choose Our MTM1800 Limestone Powder Grinding Line?

1. High efficiency and energy saving, effectively reducing production costs.

2. Adjustable finished product fineness, suitable for a variety of applications.

3. Durable equipment and easy maintenance.

4. Factory direct sales, comprehensive support.

5. Professional team: With over 15 years of experience in limestone powder equipment manufacturing, we provide free technical consultation.

6. High cost-effectiveness: Direct sales from the source, eliminating any middleman markups, effectively reducing user procurement costs.

7. Global service: We support customized production, installation and commissioning, and technical training to ensure efficient equipment operation.

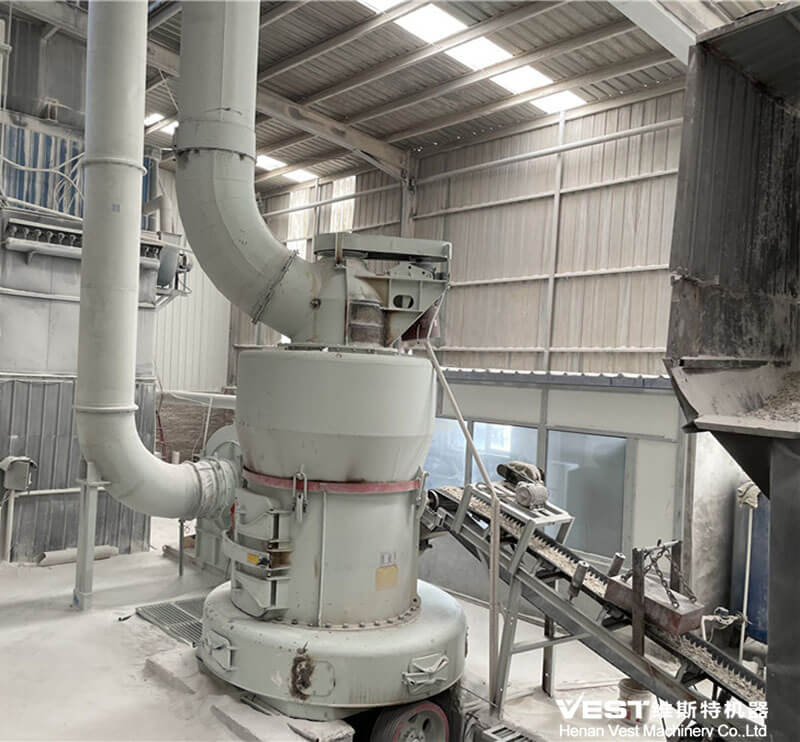

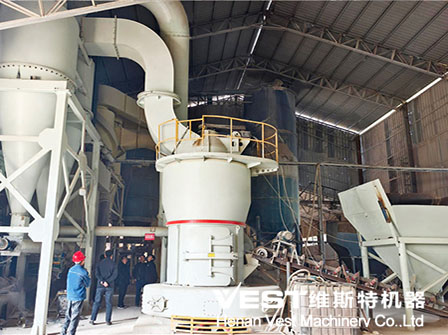

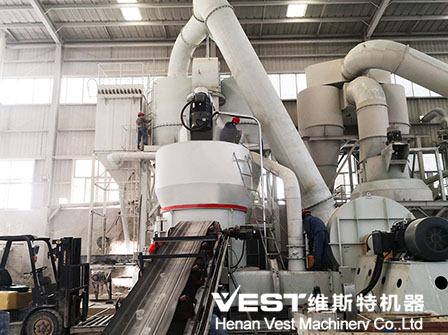

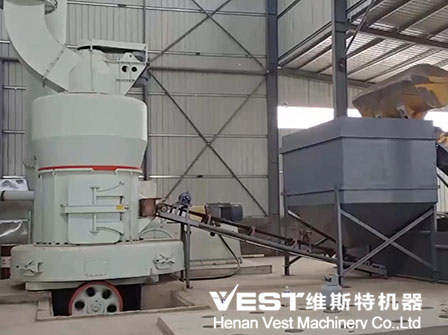

8-10 tph MTM1800 Limestone BFS Grinding Line in Mexico

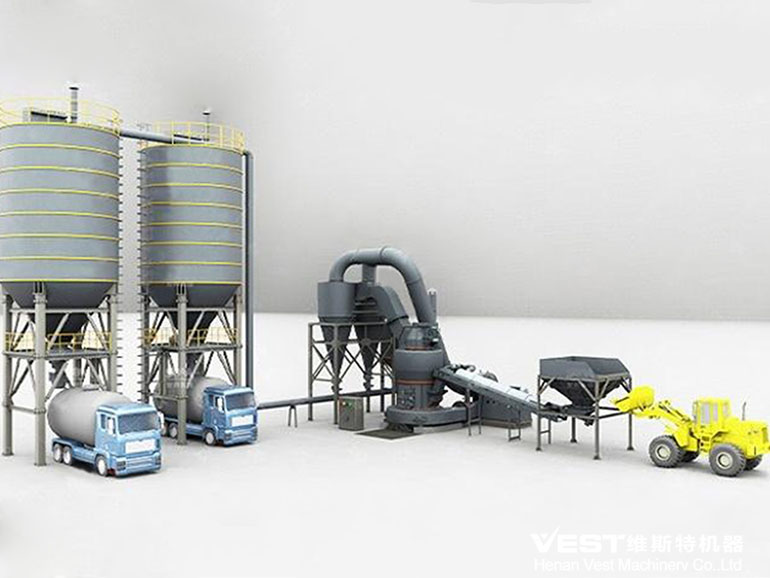

The MTM1800 European Roller Mill Process Mainly Includes the Following Steps:

1. Feeding: Material is directly fed into the feed hopper using a forklift or truck. A bar valve is installed below the feed hopper to effectively control the material flow by adjusting the grid gap.

2. Grinding: After the material falls onto the variable frequency belt feeder, it is evenly, quantitatively, and continuously fed into the main grinding chamber for grinding.

3. Classification: The ground material is conveyed by the fan airflow to the classifier for classification. Under the action of the analyzer, materials that do not meet fineness requirements fall into the grinding chamber for re-grinding. Qualified materials flow through the airflow through a pipeline into the cyclone powder collector for separation and collection, and are discharged through the discharge device as the finished powder.

4. Dust Removal: The separated airflow passes through the return air duct at the top of the cyclone powder collector and enters the fan. This system operates under positive and negative pressure conditions and is equipped with a pulse dust collector, effectively protecting the environment and human health while improving industrial production efficiency.

5. Discharge: The finished powder is transported by a screw conveyor below the powder collector to a bucket elevator, and then to the finished product silo. Tanker trucks receive the material below and take it away when it is full.
