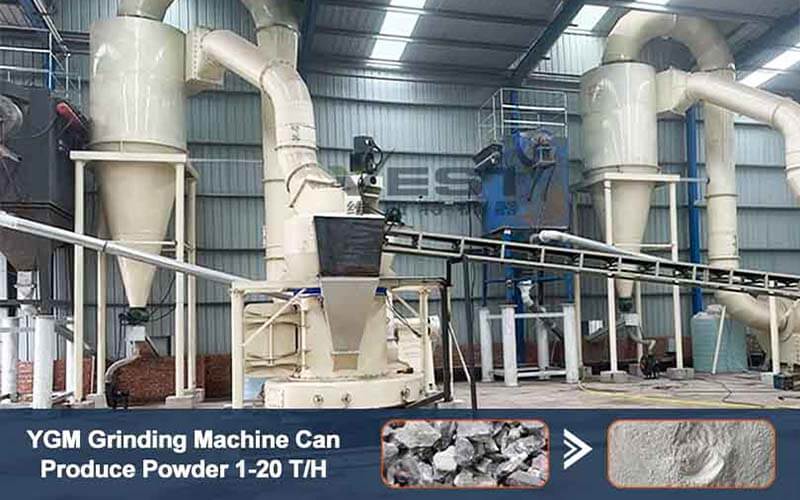

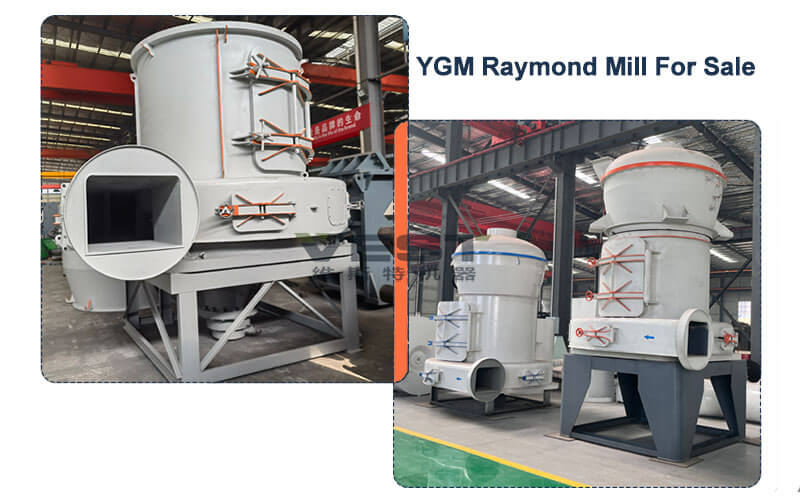

‌YGM Raymond Grinding Mill is usually used to grind non-metallic minerals, such as limestone, calcite, etc. The powder fineness is generally between tens and hundreds of meshes.

‌No matter what kind of Grinding Mill Equipment, once the powder output is abnormal, it may lead to problems such as reduced output, substandard fineness, powder being too coarse or too fine.

The Main Reasons For Abnormal Powder Discharge of YGM Grinding Mill Include The Following:

1. The Oowder Lock Is Not Sealed Tightly:

If the powder lock of the Raymond mill is not well sealed and powder leaks during the grinding process, it will cause powder backsucking, resulting in no powder or less powder output.

‌Solution:

‌Check the seal of the powder lock: Check the seal of the powder lock regularly to ensure it is tight and leak-free. If the seal is found to be loose, the sealing degree should be adjusted in time.

2. Fan Blades Are Worn or Air Duct Is Blocked:

‌Blade wear or air duct blockage will lead to reduced air volume and affect the normal operation of the mill.

‌Solution:

‌Check the fan and air duct: Check the wear of the fan blades, replace the severely worn blades in time, and clean the foreign objects in the air duct to keep the air duct unobstructed. ‌

‌3. The Blade Is Severely Worn:

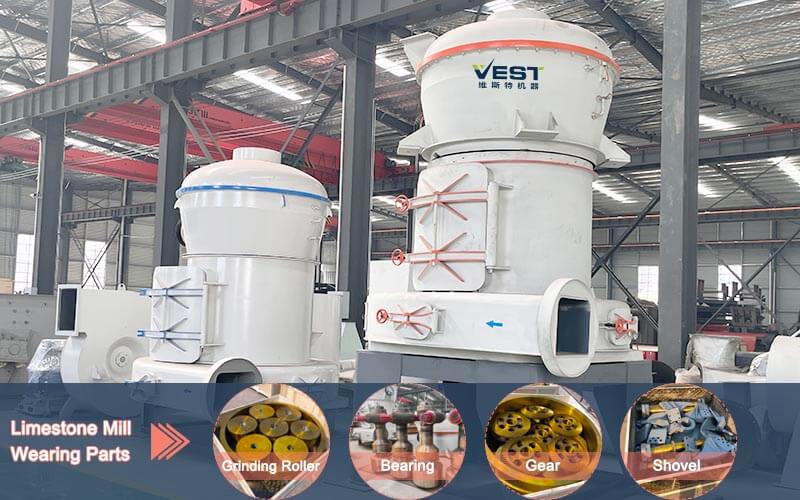

The scraper of Raymond mill is a vulnerable part in the mill, which is responsible for scooping up the materials. When the scraper has been used for a period of time or the quality is not strong enough, it will be worn out and the materials cannot be scooped up, which will also result in no powder output or less powder output, thus affecting the powder output.

Solution:

‌Check the wear of the blade regularly and replace it with a new one in time to ensure the normal operation of the equipment. ‌

‌‌4. Improper Adjustment of Fan Air Volume‌:

‌If the air volume of the fan is not adjusted properly, abnormal powder discharge will occur. If the air volume is too large, the powder output of the grinding mill will be abnormal and the powder output will be too coarse; if the air volume is too small, the powder output will be too fine.

‌Solution:

Adjust the fan air volume appropriately to ensure that the air volume is moderate and avoid excessive or insufficient air volume.

‌5. The Analytical Engine Does Not Work:

‌The analyzer of the Raymond mill is responsible for analyzing whether the size of the finished powder meets the standard. If the analyzer blades are severely worn, the powder output may be too coarse or too fine.

Solution:

Just replace the analyzer blade with a new one.
